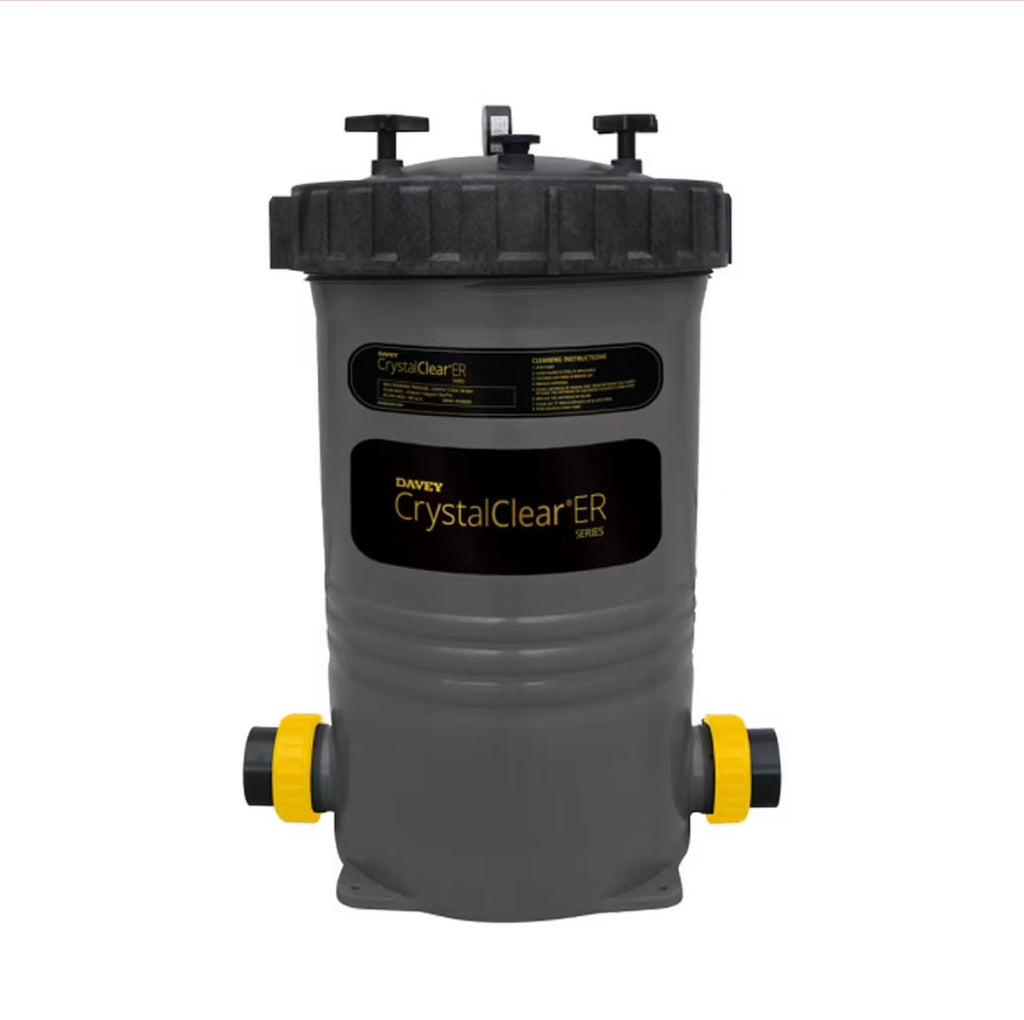

Davey CrystalClear ER 135sqft Cartridge Filter Complete
Provides crystal clear water with minimal maintenance.
Less water used, no backwashing needed. Ideal for applications where backwashing may not be practical or in areas where water may be scarce.
Tank constructed from high-impact polypropylene as a solid one-piece mould for a non-corrosive long life.
Low profile designed with easy access to the filter cartridge for removal, cleaning, and installation.
A quality pressure gauge makes it easy to see when element cleaning is required.
A manual air bleed enables the filter to be de-pressurised before opening for cleaning.
Filter cartridges are fabricated from heavy-duty, reusable polyester fabric with wide and deep pleats for better filter efficiency, easy cleaning, and longer cartridge life.
Replacement filter elements available.
50mm quick connect barrel unions supplied for simple installation.
Maximum flow rate 381 lpm.
Maximum working pressure 250 kPa.
Filter Specifications
Filter Area: 135 sqft (12.5m2)
Flow Rate: 381 lpm
Max Pressure: 250 kpa
Filter Housing Dimensions
Length: 480mm
Width: 480mm
Height: 668mm (Needs 1000mm clearance to remove filter)
Weight:
